RBH Integra32 Software Installation & Setup
Server and client installation, database and controller setup, access programming, web/mobile modules, training, upgrades and support.
Integra32 installed as an operating platform

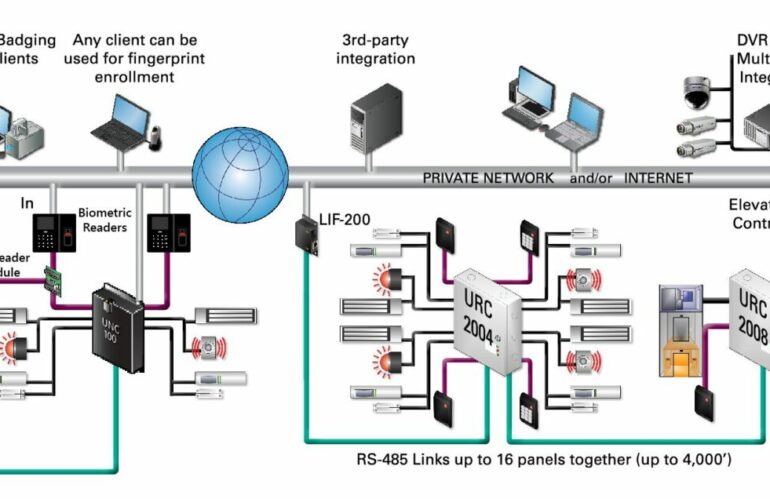

Integra32 brings access control, intrusion, elevator control, video/DVR integration, biometrics, photo ID, building automation and alarm monitoring into a Windows/.NET management environment. It supports full clients plus browser and mobile administration when the required components are configured.
We install the server and clients, enroll compatible controllers, build the door and cardholder database, configure access levels and alarms, activate licensed modules, test backups and train the people who will administer the system.
Integra32 capabilities and setup
Access and alarm control
High-security mode, local/global anti-passback, first-person delay, mantrap/sally-port logic, forced or held door alarms and scheduled locking are programmed and tested against the written operating procedure.
Automation
Global links and multi-swipe actions can control doors, lighting, HVAC or alarm functions. We label and document every automated action so it remains supportable.
Elevators
Published Integra32 configurations can manage up to 32 floors per controller. Final relay count, cab interface, fire behavior and elevator-contractor scope are engineered per building.
Visitors and photo ID
Visitor records, temporary access and credential badging can be integrated with cardholder administration. We set fields, templates, retention and operator permissions.
Web, mobile and video
Browser/mobile administration, RBHView and supported third-party VMS connections require server, certificate, firewall, camera/event mapping and role configuration.
Growth path
RBH publishes 64 doors as the included Integra32 capacity, expandable to 128, with an in-place path toward AxiomV. Licensing and controller eligibility are confirmed before design.
Our Integra32 software deployment checklist
Server and database
- Supported Windows edition and resources
- Service accounts, endpoint protection and firewall
- Database location, backup and restore test
- Remote-support and patch responsibility
Application configuration
- Sites, controllers, doors and naming standard
- Users, roles, schedules and access levels
- Alarm priorities, email and global links
- Web/mobile, badging, visitor and video modules
Field commissioning
- Reader and credential transactions
- REX, door position, lock and alarm timing
- Controller communications and offline behavior
- Elevator and third-party interface tests
Handoff and support
- Administrator and operator training
- Database and configuration backup
- Software support/maintenance status
- As-built records and escalation path
Official Integra32 resources
Installation and upgrade files remain on RBH’s controlled support channels. We do not host them locally.
Plan an installed and supported system
360 Technology Group can review the openings, existing equipment, network, software, credential workflow and integration requirements before recommending a current configuration for North Carolina and South Carolina.
